Cockpit Overview

1. Division into Subareas

The cockpit can be roughly divided into five areas. The sixth element is Stick and Throttle (HOTAS). These areas are described in more detail on the following pages:

  1. The Central Panel CP
  2. Left Lateral Panel LLP
  3. Right Lateral Panel RLP
  4. Left Side Console LSC
  5. Right Side Console RSC
  6. HOTAS (Hands On Throttle And Stick) + J = Control stick or S = Thrust lever

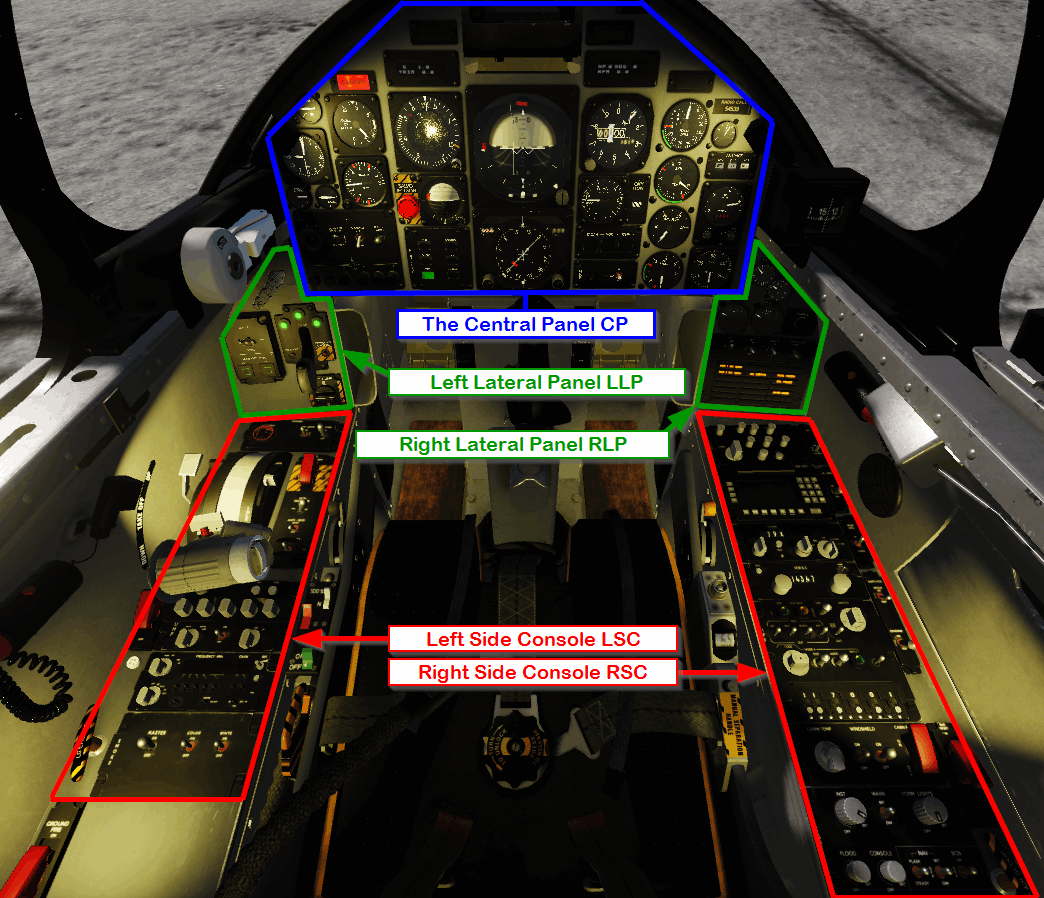

Cockpit areas, Image of kaltokri, Public Domain
