AGM-88 HARM: Target of Opportunity (TOO)

AGM-88 HARM

4. Target of Opportunity (TOO)

The Target of Opportunity is similar to the SP mode. However, the target is identified and selected via the HARM missile's seeker head.

In the game there is a free practice mission without explanatory texts to practice and deepen these steps.
To do this, open MISSION > F/A-18C > Weapon qualification - AGM-88C HARM.

Perform the following steps:

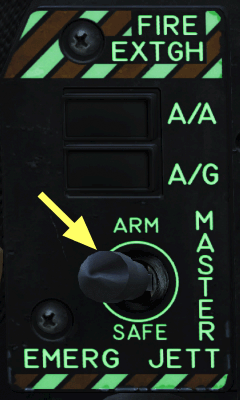

Activate weapon main switch MASTER ARM VI-L.

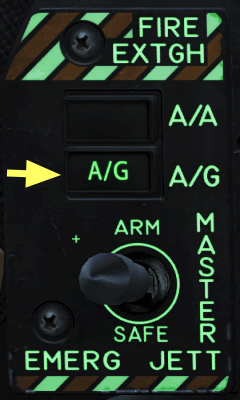

Main mode set to Air/Ground MASTER MODE A/G VI-L.

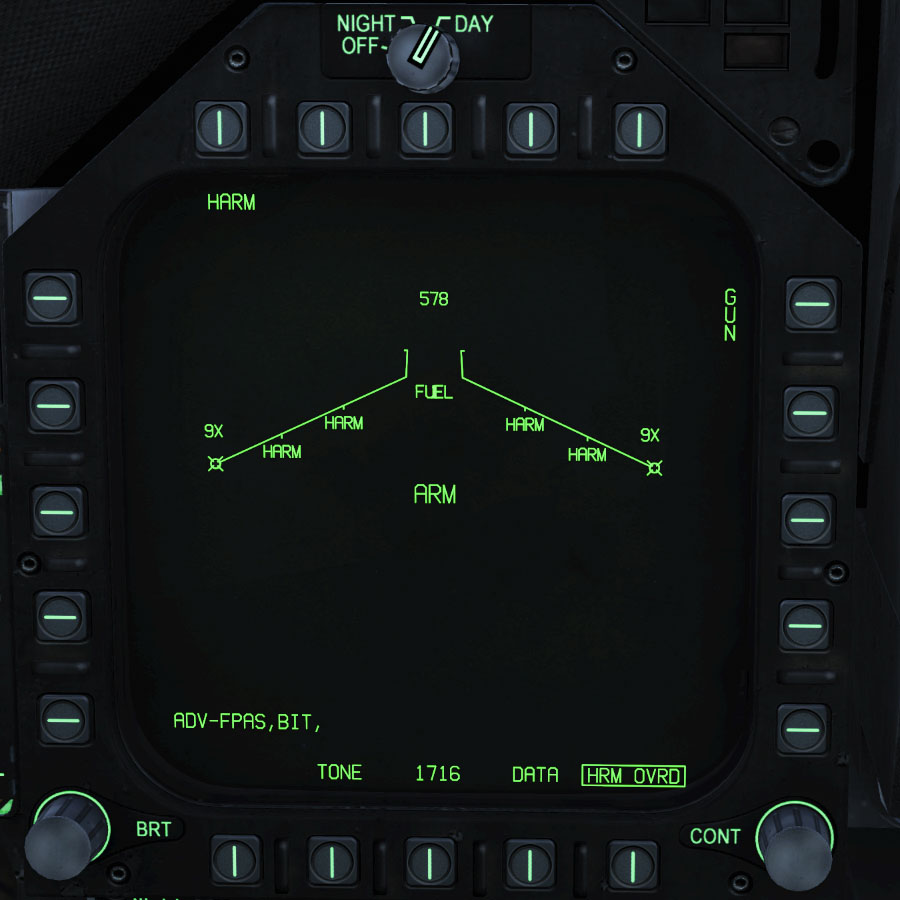

On the left DDI, select the SMS (Stores Mmanagement Ssystem) on SMS-PAGE VI-L.
On the SMS page, select HARM via a PB on the top row PB HARM VI-L.

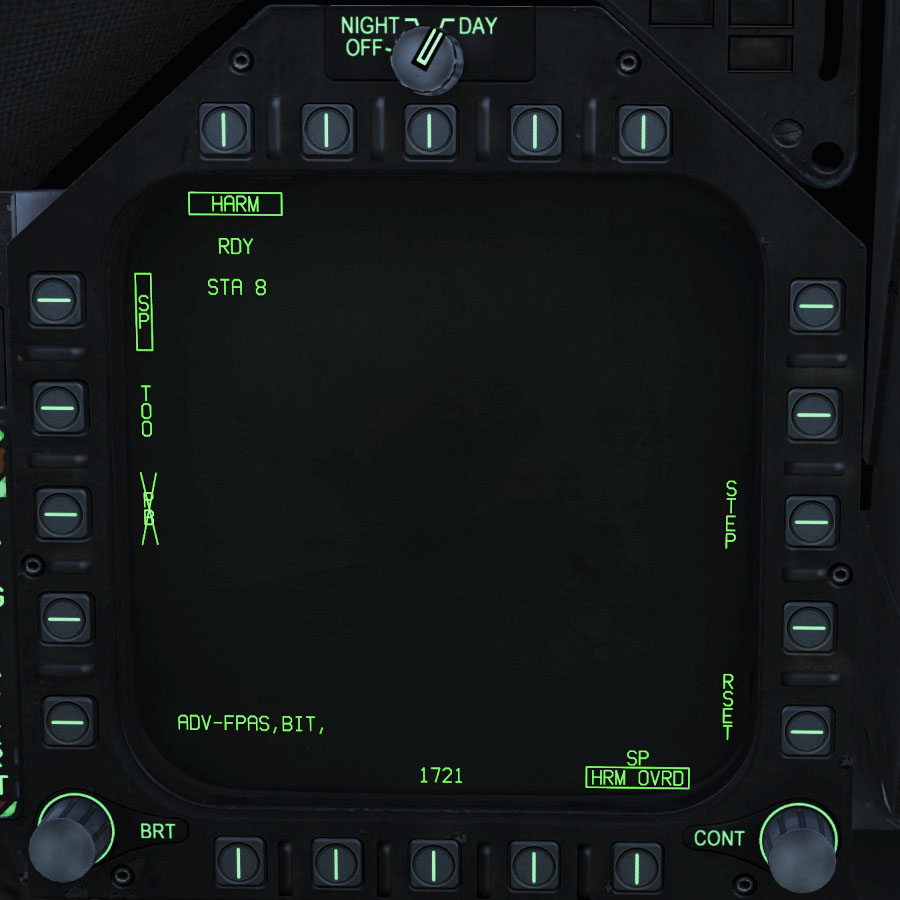

The HARM page opens automatically.

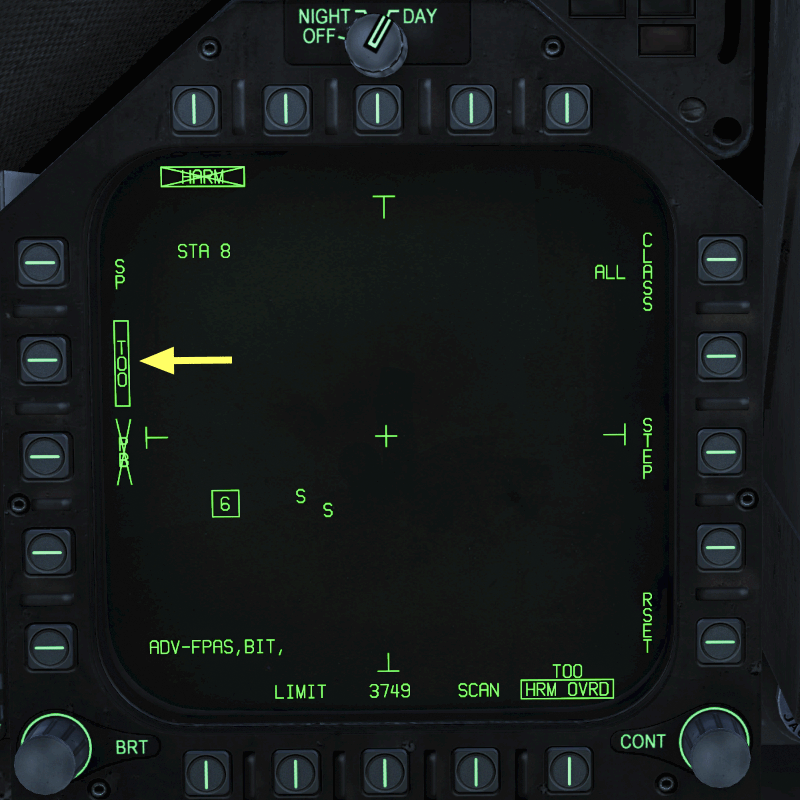

Select the TOO mode using PB here PB TOO VI-L.
The HARM page changes:
Activate the left DDI (with the HARM side) via sensor control switch-left RAlt + , SET DDI as SOI VI-L.

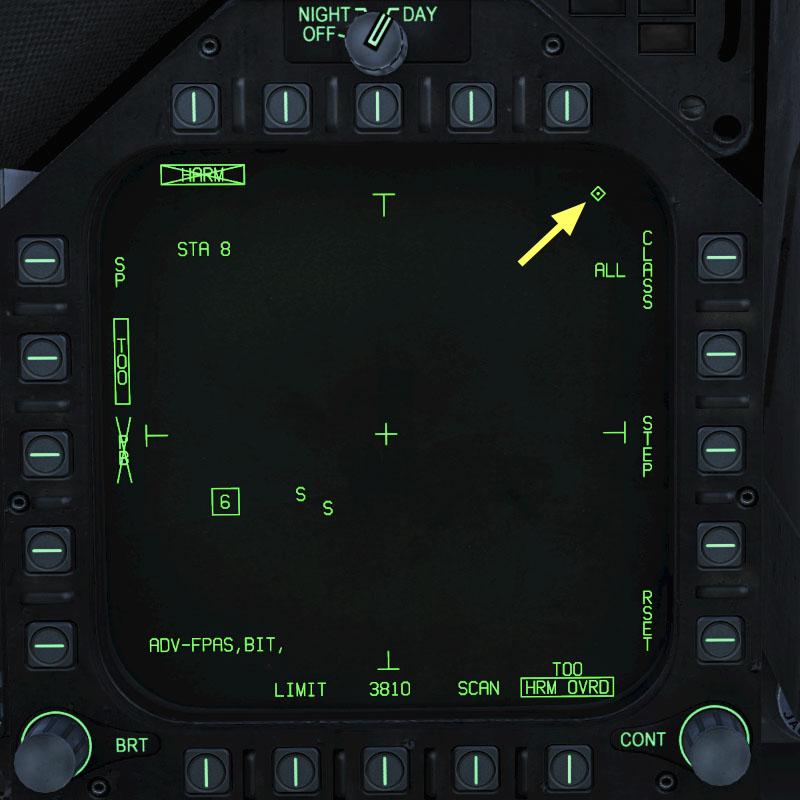

A diamond appears in the upper right corner of the DDI to symbolize that the DDI is the active sensor.

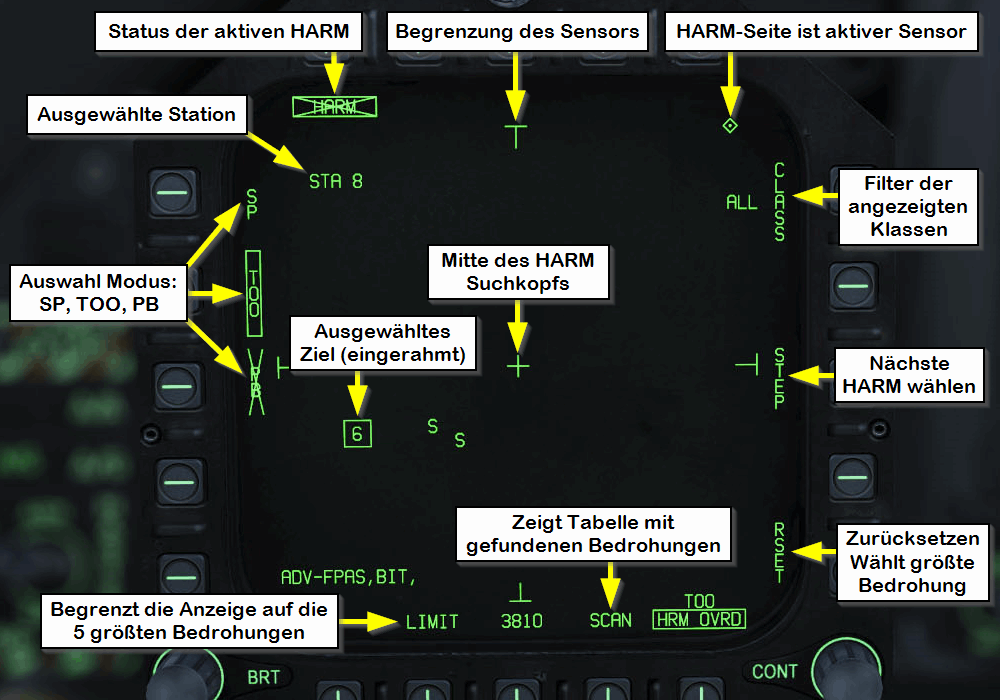

Here's an explanation of what can be seen on the HARM TOO page:

If you press the PB CLASS button, you can set a filter to display only the one you want.

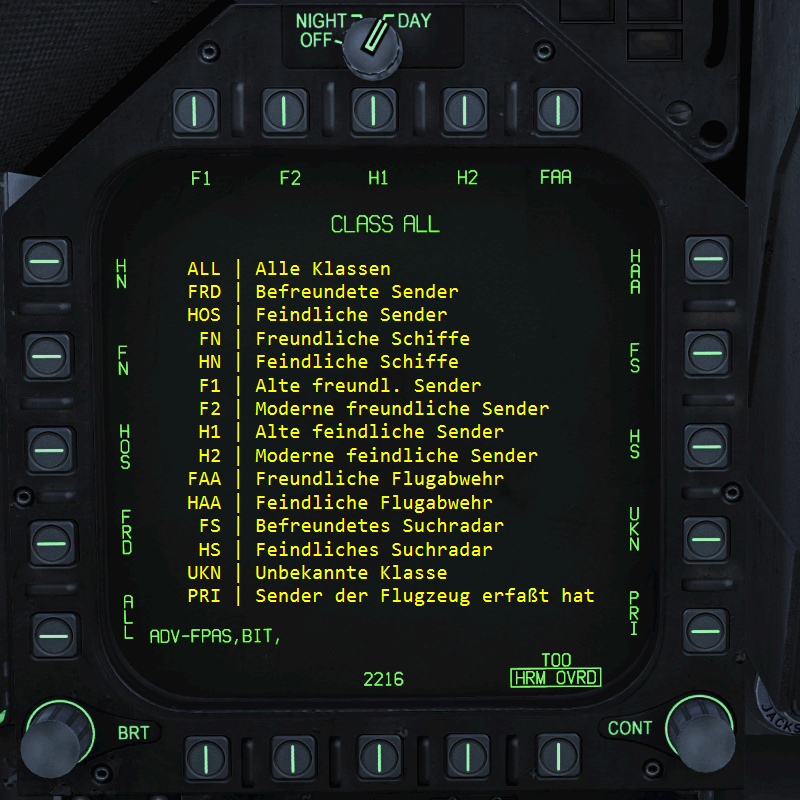

Here is an explanation of the CLASS subpage:

CLASS Subpage, image from kaltokri, public domain

Abbreviation	Description
ALL	All classes
FRD	Friendly Emitters
HOS	Hostile Emitters
FN	Friendly Ships
HN	Hostile Ships
F1	Old Friendly Emitters
F2	Modern Friendly Emitters
H1	Old Hostile Emitters
H2	Modern Hostile Emitters
FAA	Friendly Air Defence
HAA	Hostile Air Defence
FS	Friendly Search Radar
HS	Hostile Search Radar
UKN	Unknown Class
PRI	Emitter that has registered our aircraft

With the PB SCAN you can display a list of detected threats.

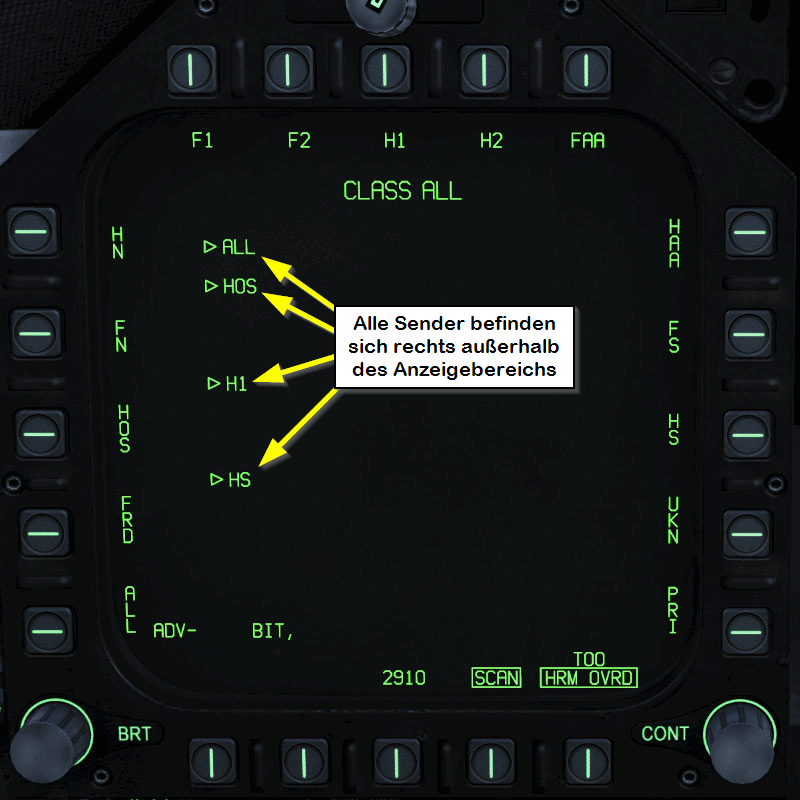

Here is an explanation of the SCAN subpage:
In the margin are the same filter buttons as on the CLASS subpage.
Left of the labels the direction is displayed.
The dot says the station is in front of you and arrows indicate the direction if the station is not in front of you (see second picture).
As in TOO mode, select the desired destination with the I (the RAID/FLIR FOV selector) SELECT TARGET HOTAS-J.

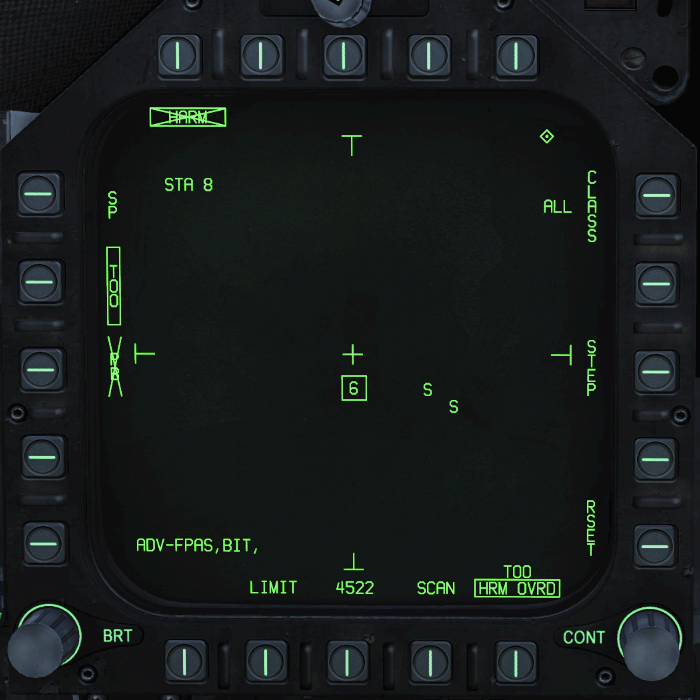

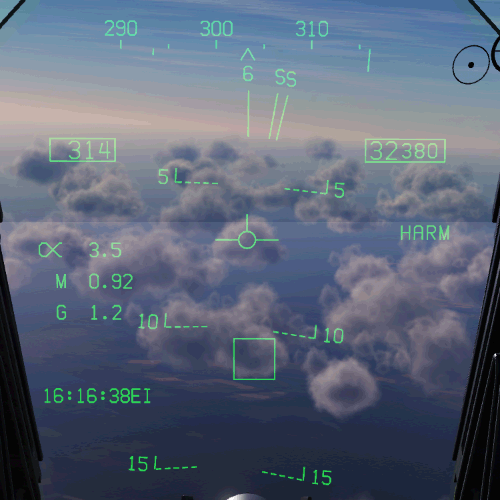

The selected emitter is displayed boxed. Both on the HARM page in the DDI and on the HUD.

If the target is not visible in the DDI, steer the aircraft in the direction of the emitter.

With the CAGE/UNCAGE button, press C to pass the selected target data to the HARM HAND OFF HOTAS-J.

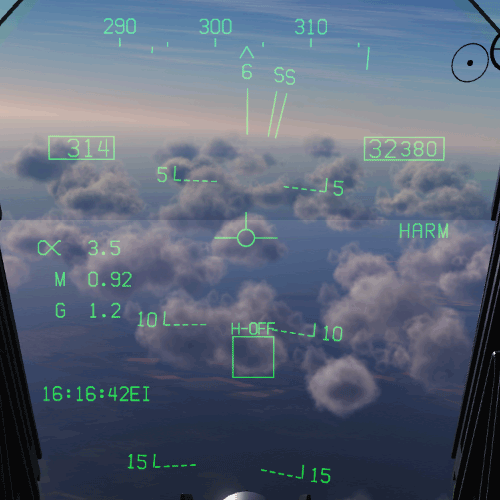

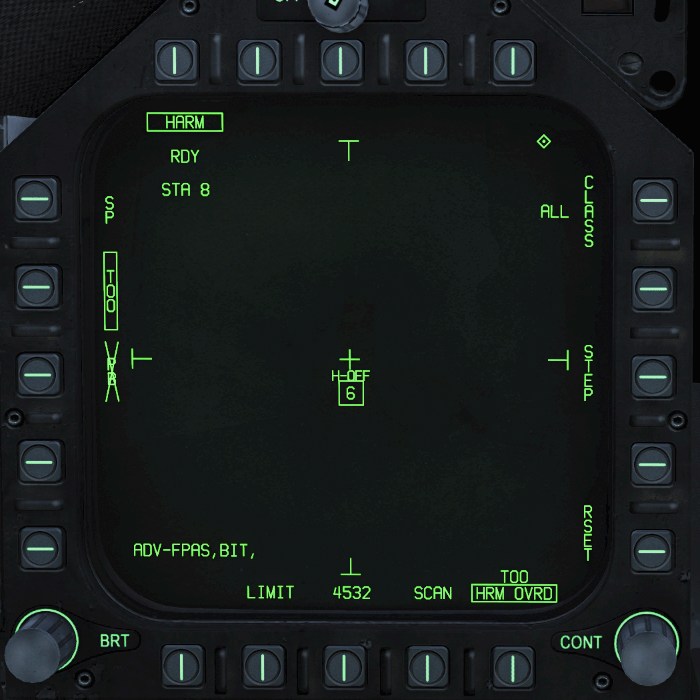

In DDI and in HUD, H-OFF appears and in DDI, HARM is displayed in the upper left corner as Ready (RDY).
Fire the missile with the weapon release button RAlt + spacebar or FIRE WEAPON HOTAS-J.
